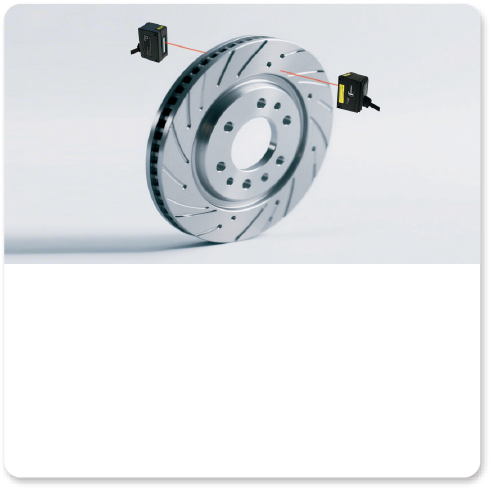

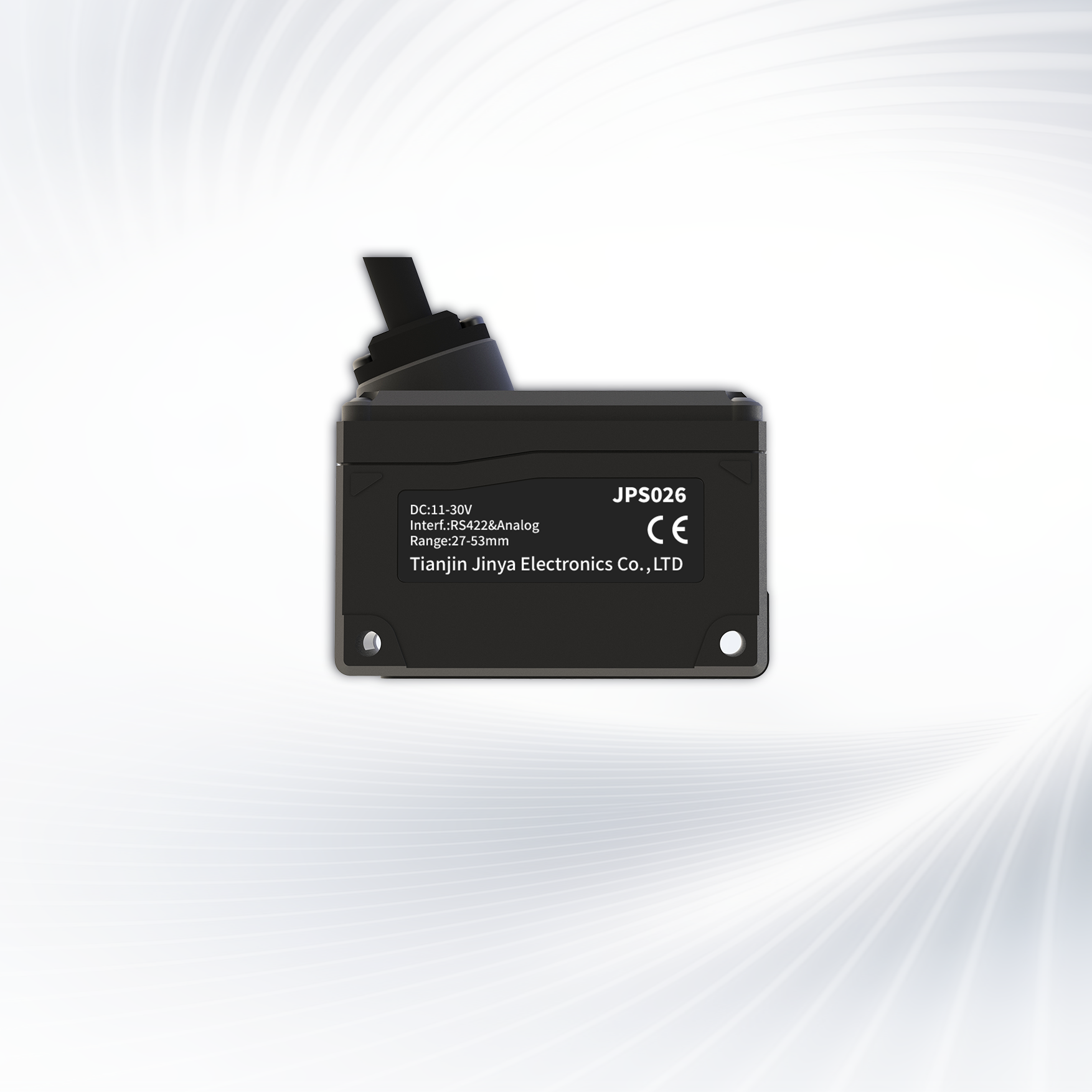

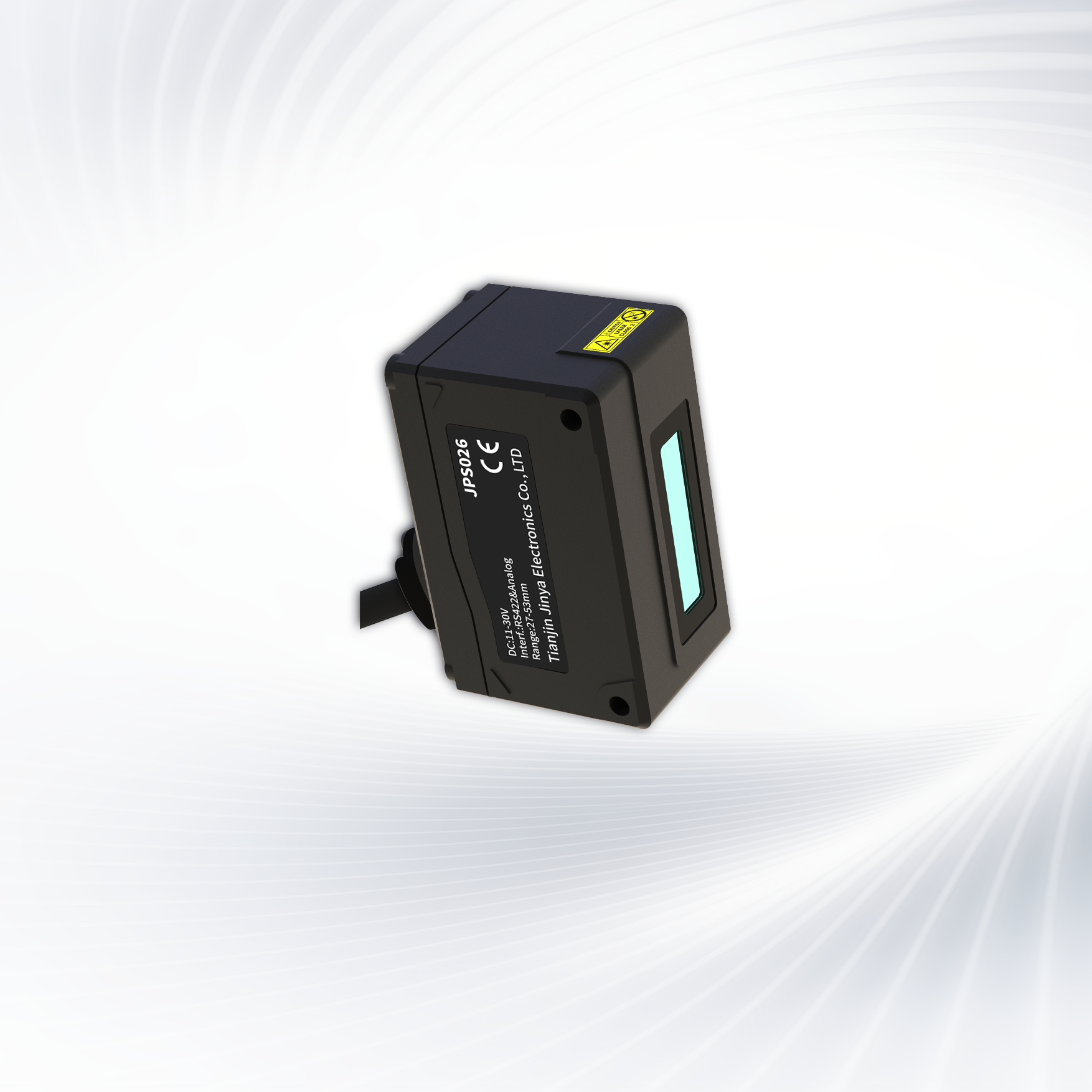

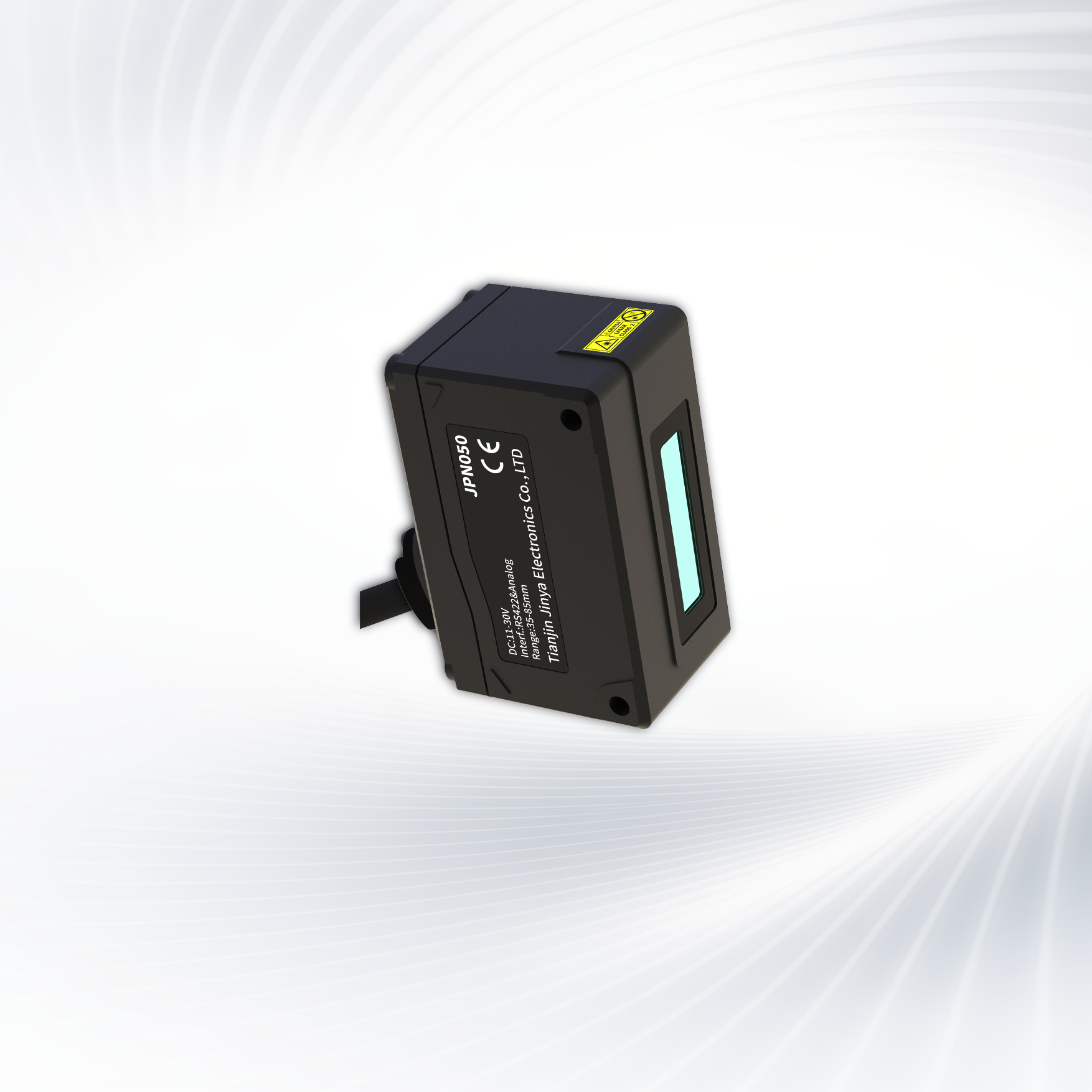

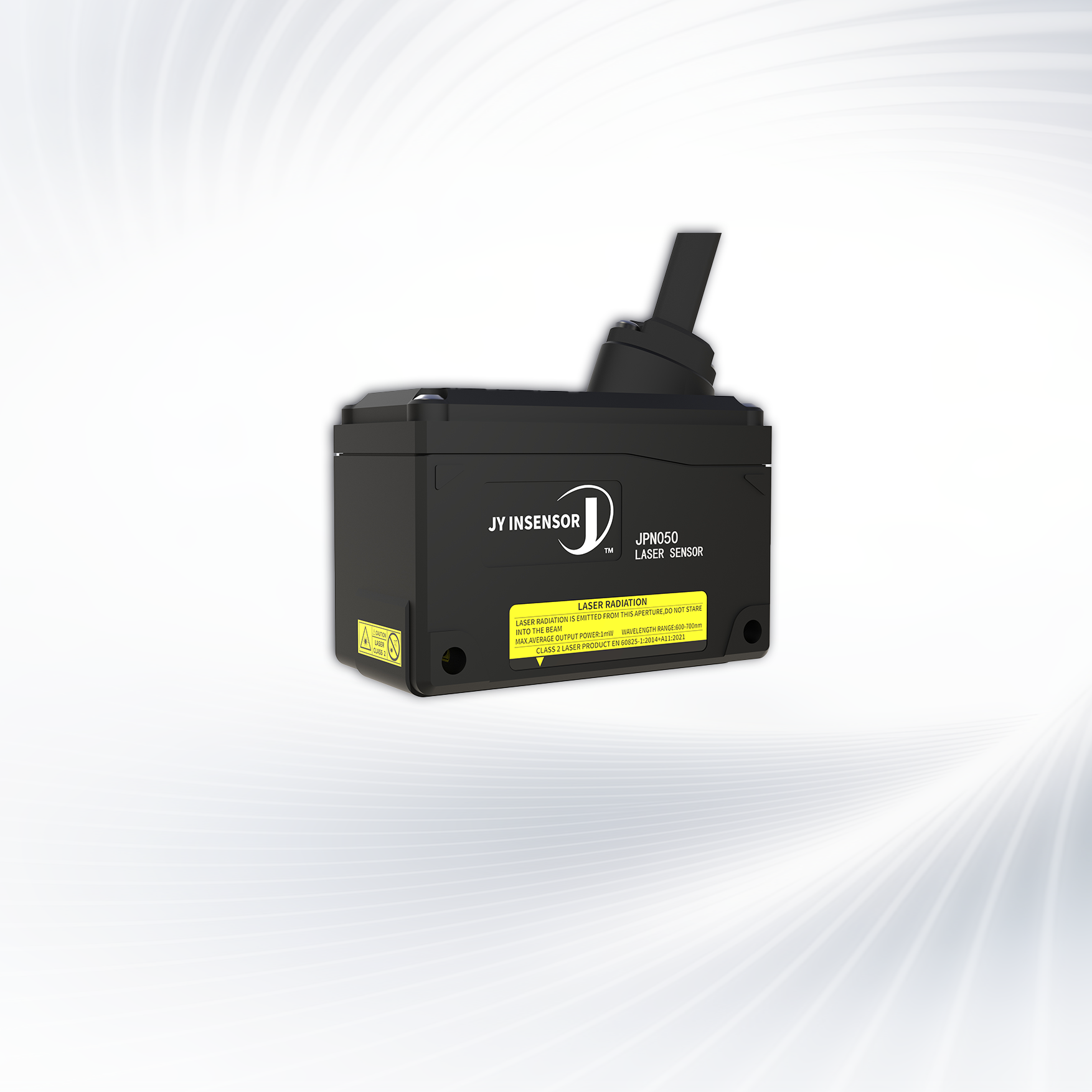

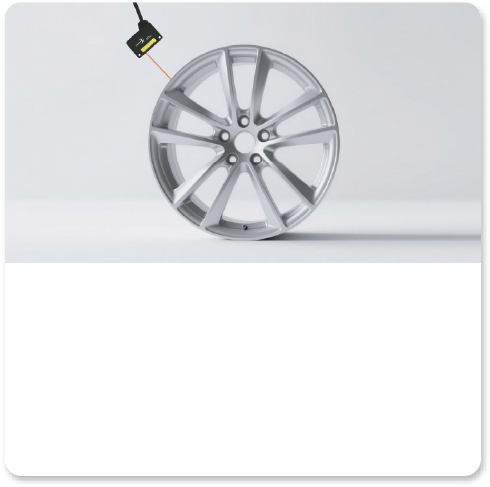

| Model |
JPS010 |
| Reference Distance |
20 mm |
| Measuring range |
15-25 mm |
| Repeatability[*1] |
0.5 μm |
| Linearity[*2*3] |
<±0.08 % MR |
| Voltage Range |
11-30 VDC |
| External Input |
Data mode, laser mode, zero reset, etc. |
| Analog Output |
Current: 4–20 mA, Load impedance: 300 Ω or less |
| Switch Output |
Open collector output (NPN/PNP switchable) |
| Communication Interface |
RS422 |
| Power Consumption |
＜2W（24V） |
| Measuring rate |
MAX: 5 kHz |
| Laser[*4] |
Red laser(658 nm)
Laser class: class2 EN:60825-1:2014+A11:2021
|
| Protection class |
IP67 |
| Temperature range |
Storage: -20~+70℃(No condensation)
Work: 0~+50℃(No condensation)
|
| Shock resistance |
15 g / 6 ms, 3 axes, 1000 times each in X, Y, and Z axes |
| Vibration resistance |
20g/20...500Hz, 10 cycles each in 2 directions along X, Y, and Z axes |
| Weight |
Approx. 198 g |

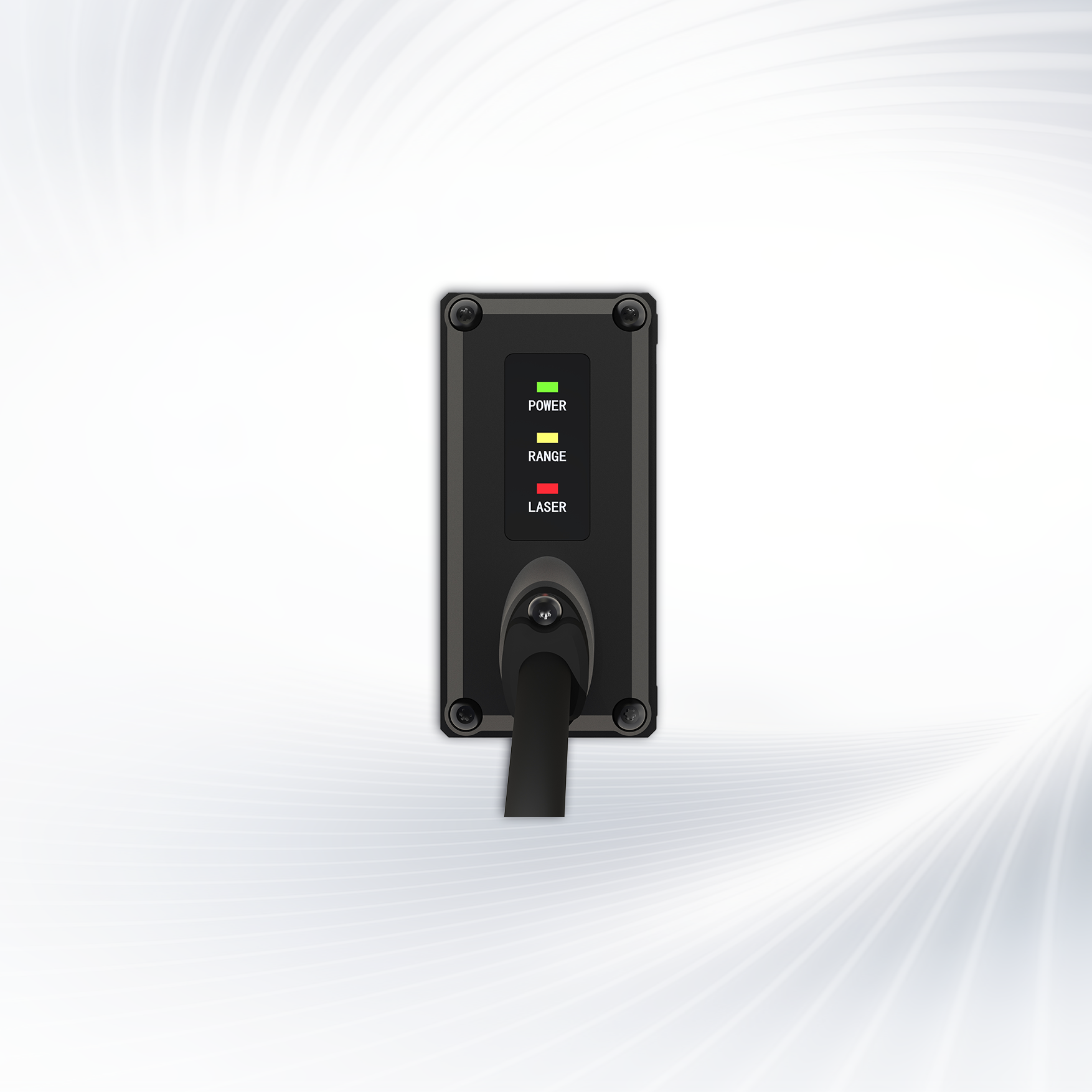

| Display |
LED indicator × 3 |
| Material |
Housing: Zinc alloy |

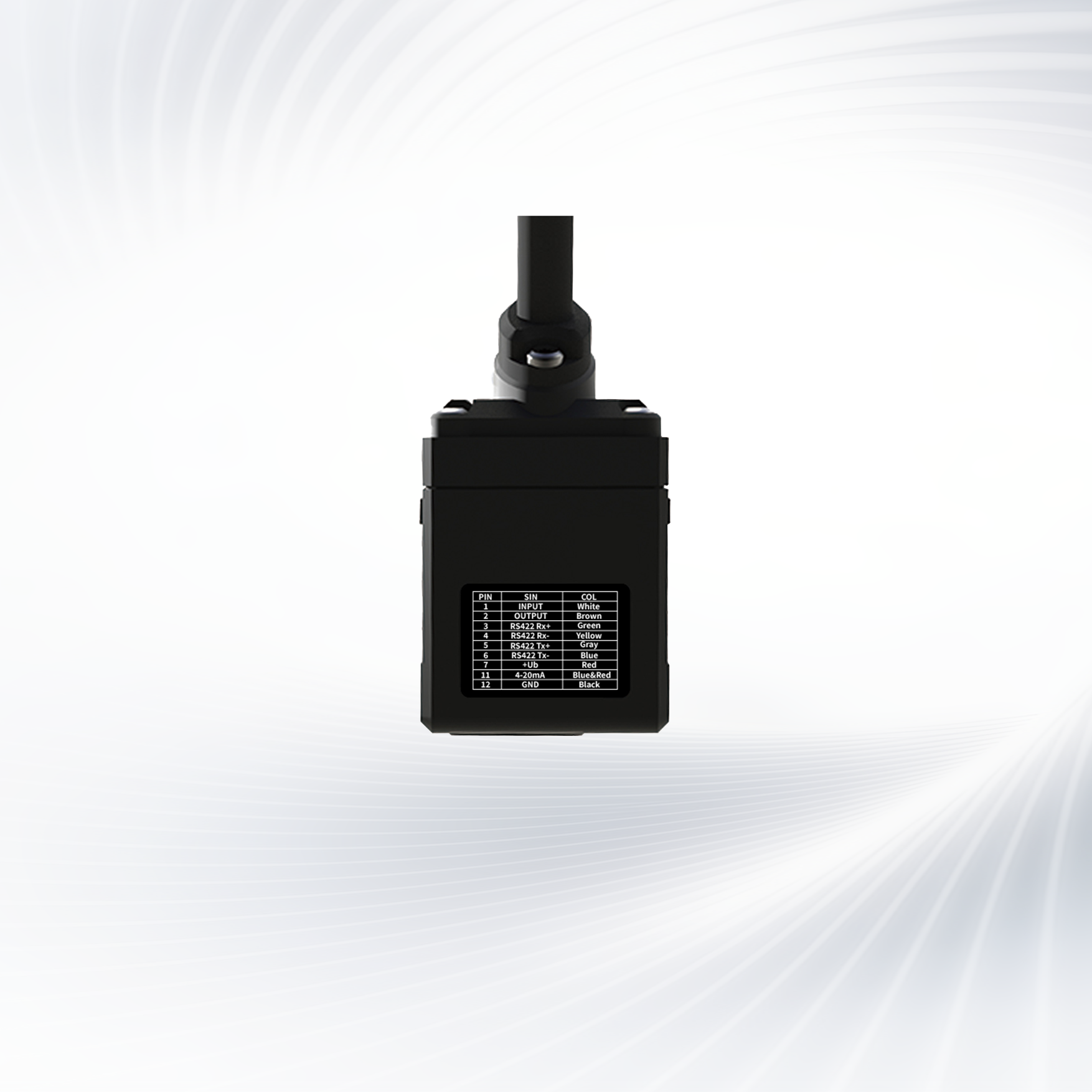

| Linking method |
300mm cable with M12 aviation Plug |
*1 Measured at reference distance, sampling period10 ms, average of 128 times, standard diffuse reflective target (white diffuse object).
*2 Is the data for measuring standard diffuse objects (white diffuse objects).
*3 FS for each model is as follows: JPS010:10 mm, JPS026:26 mm, JPN050:50 mm, JPN100:100 mm, JPN150:150 mm, JPN200:200 mm.
*4 The FDA's (CDRH) laser classification is based on IEC60825 - 1 and is implemented in accordance with the requirements of Laser Notice No.50.
