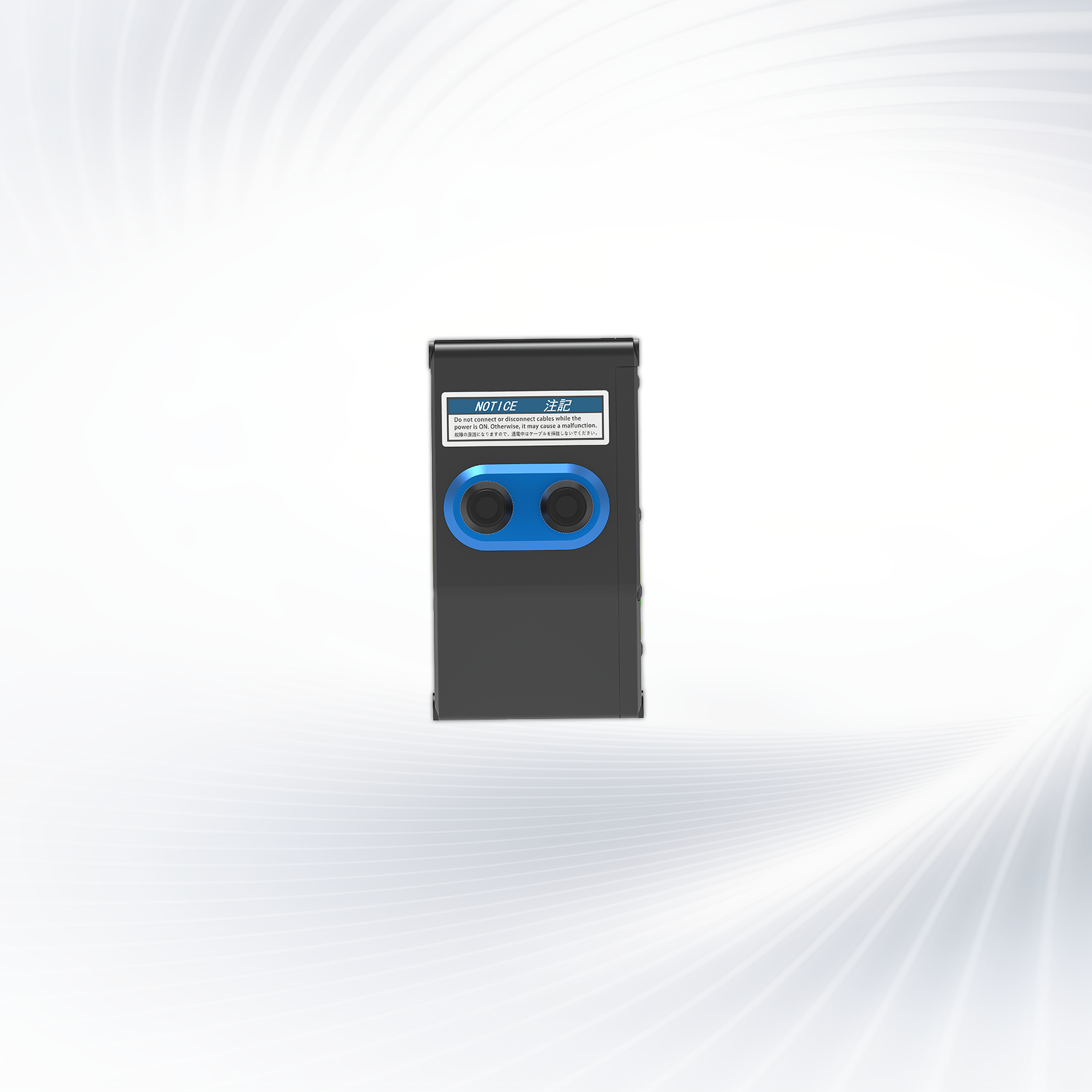

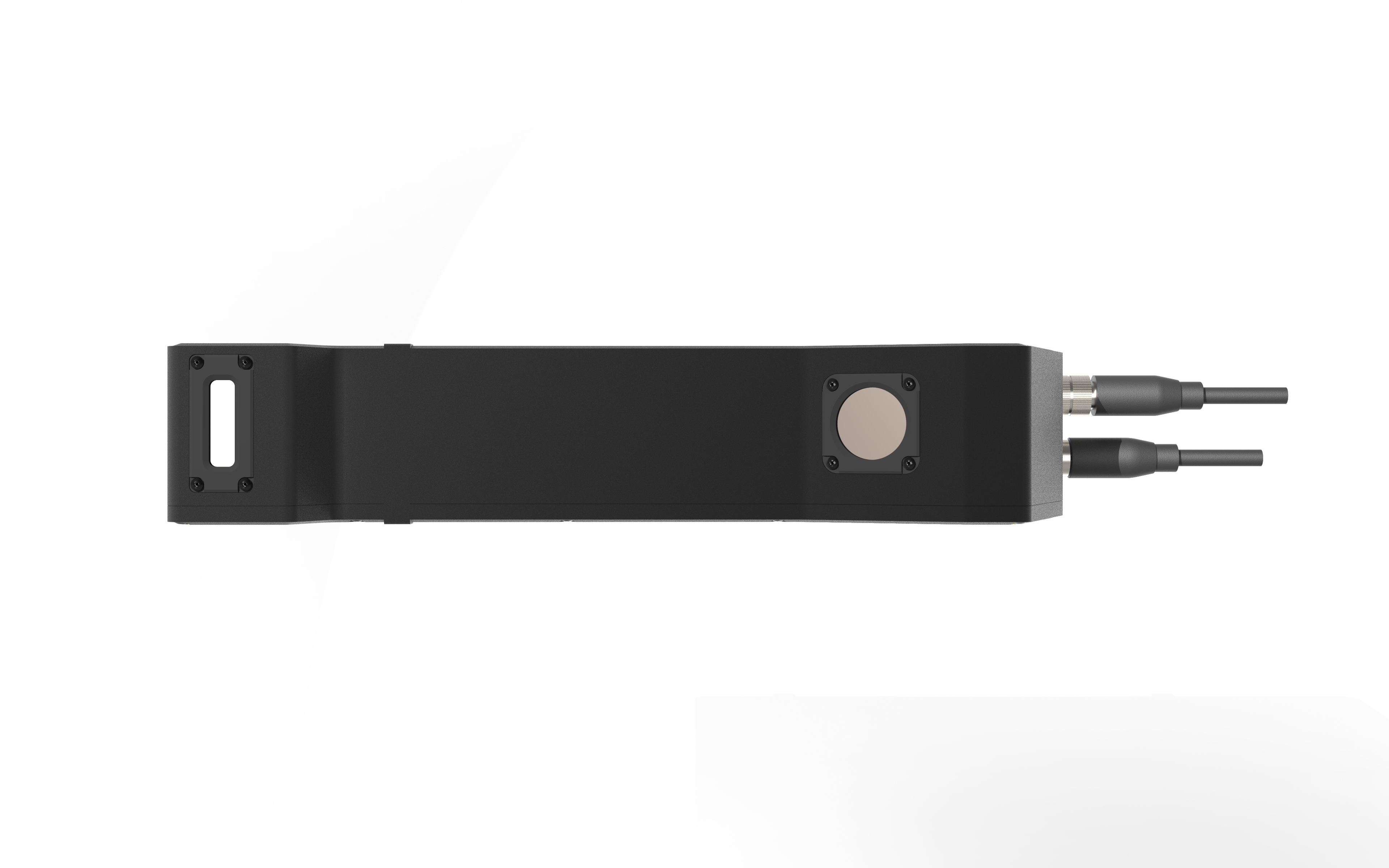

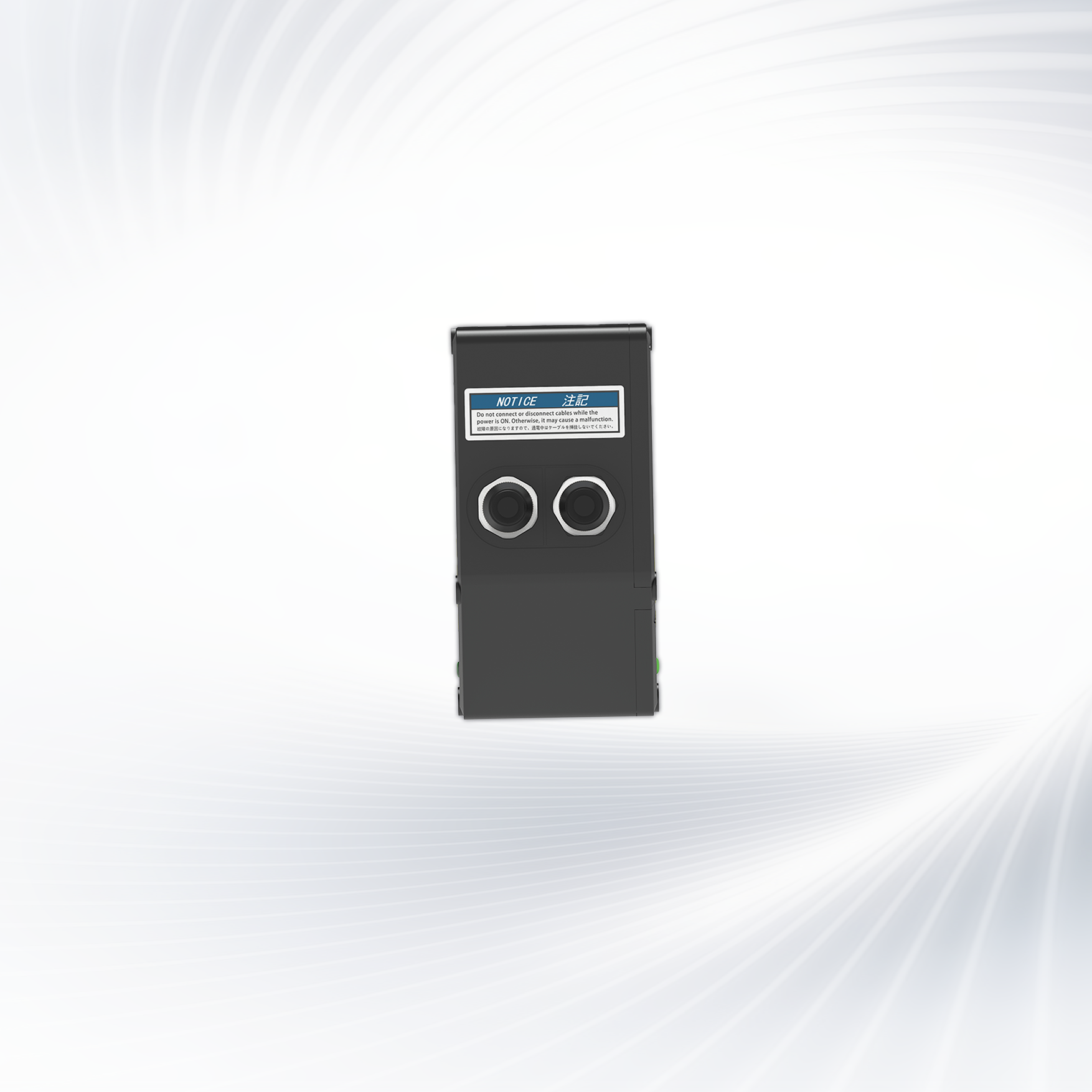

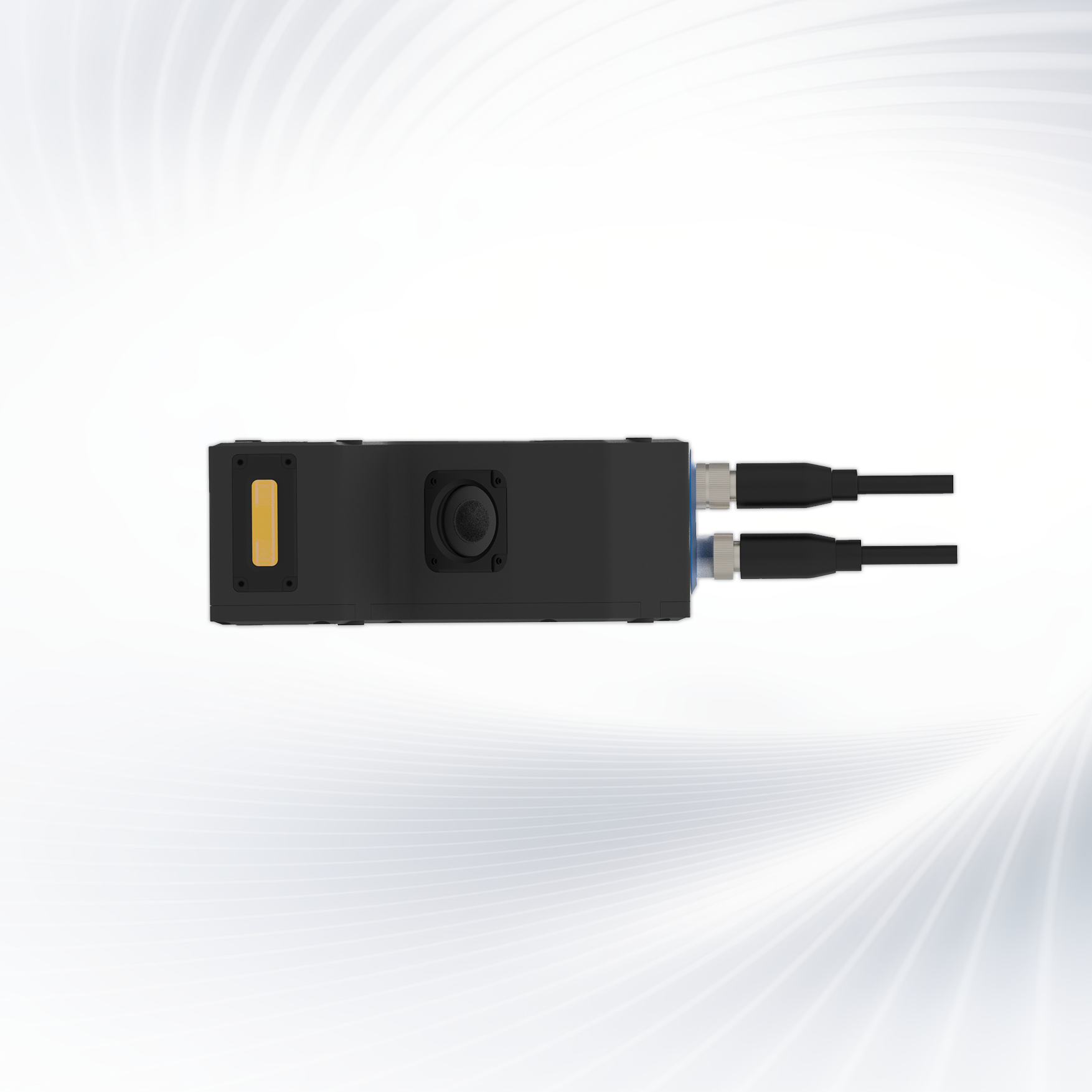

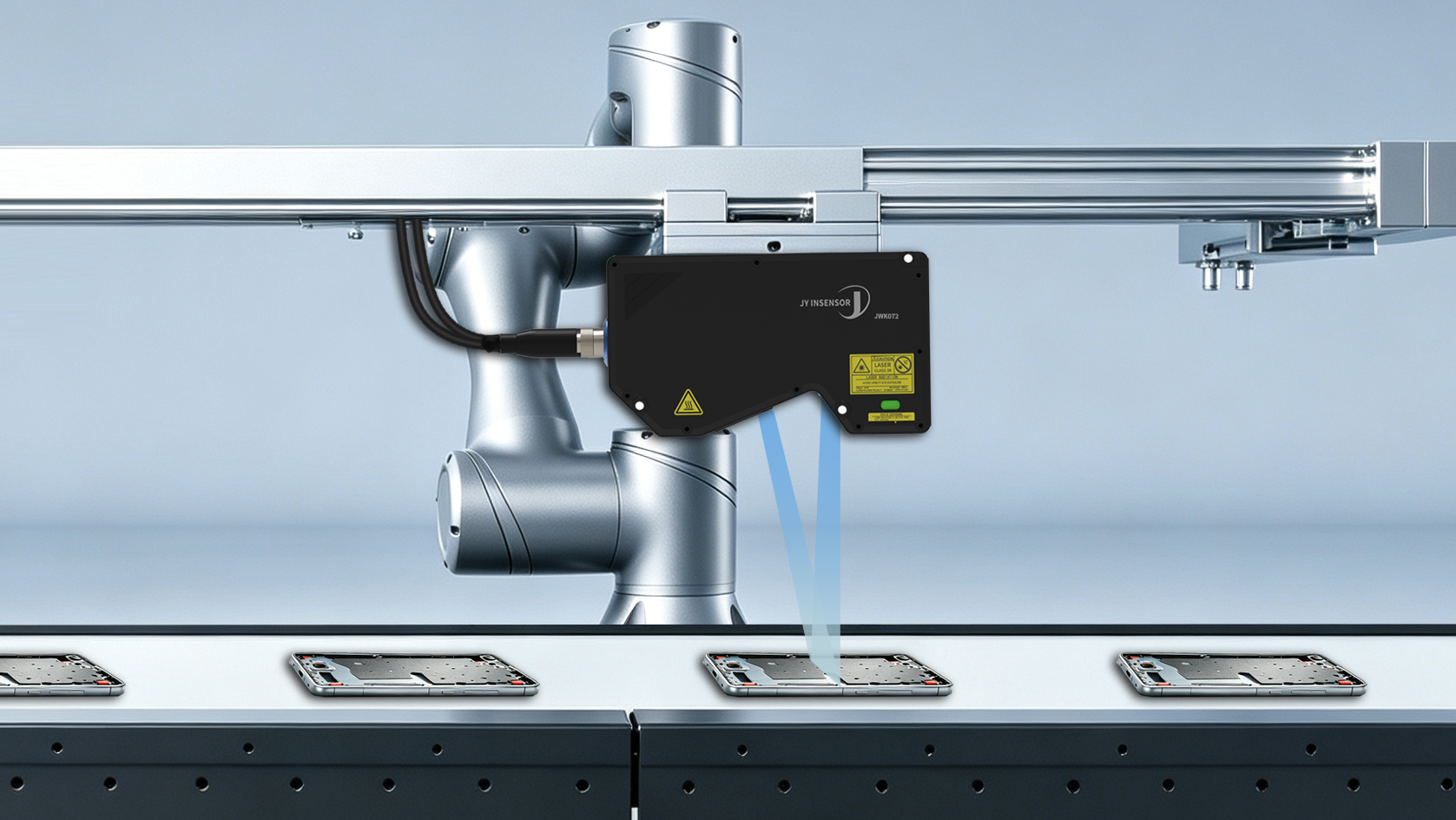

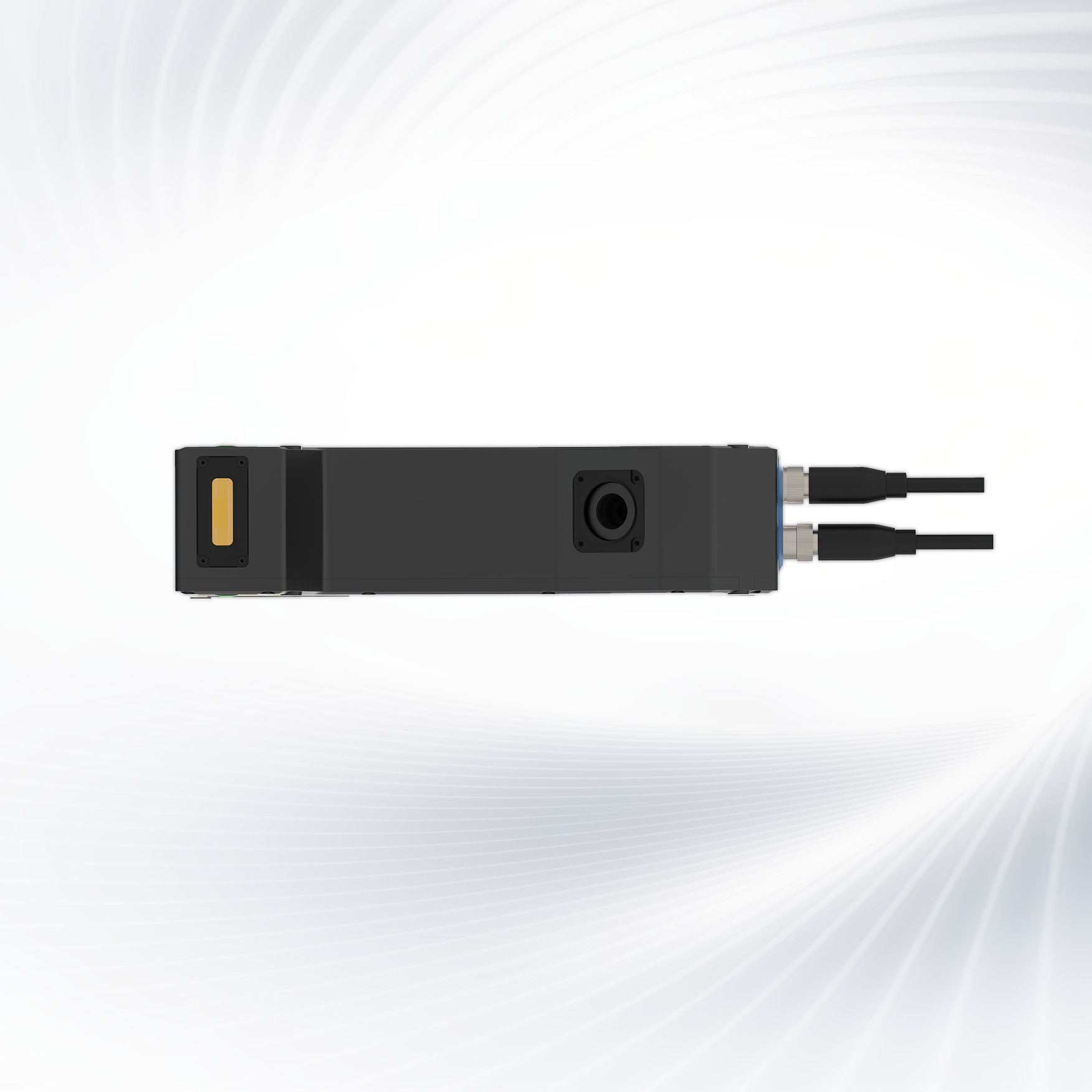

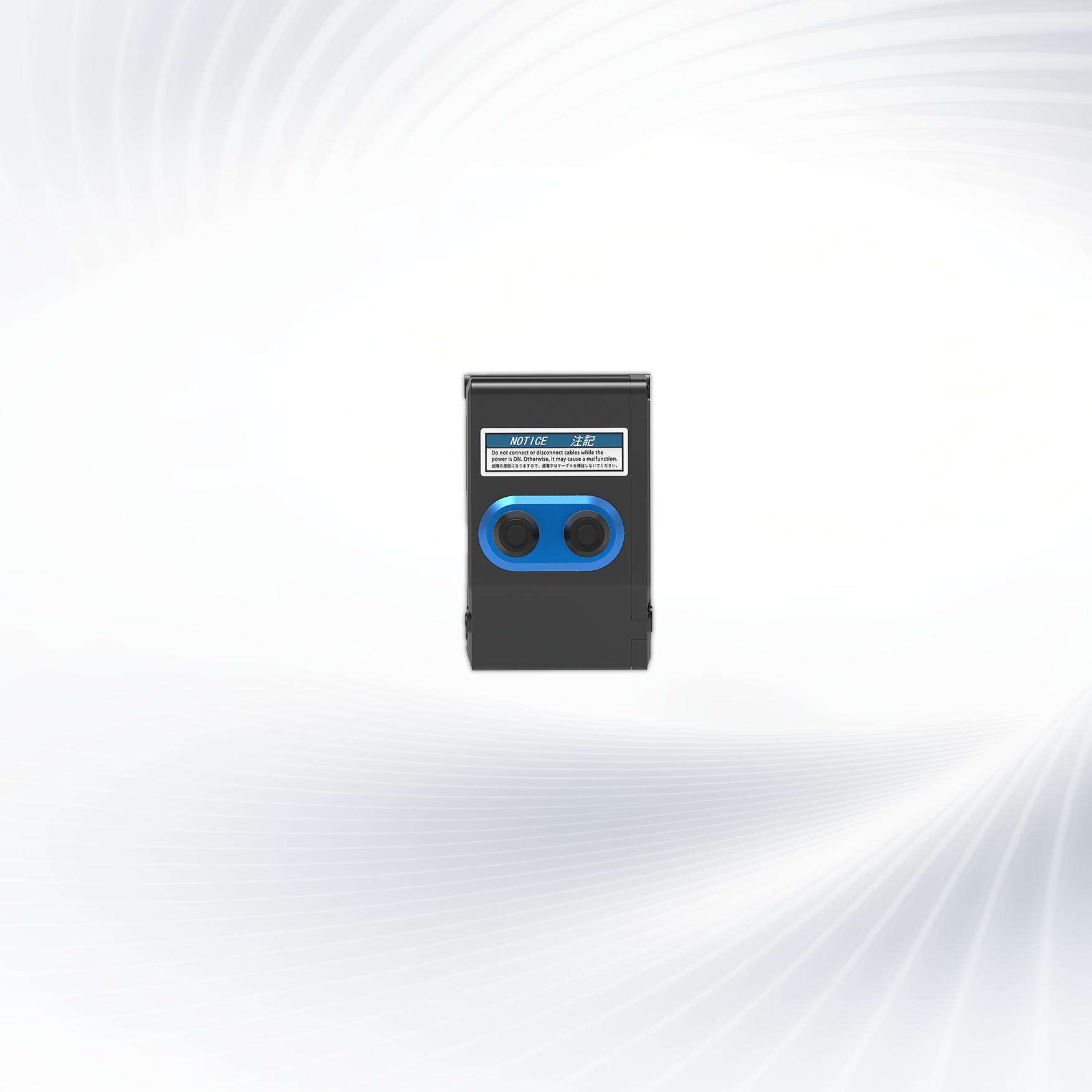

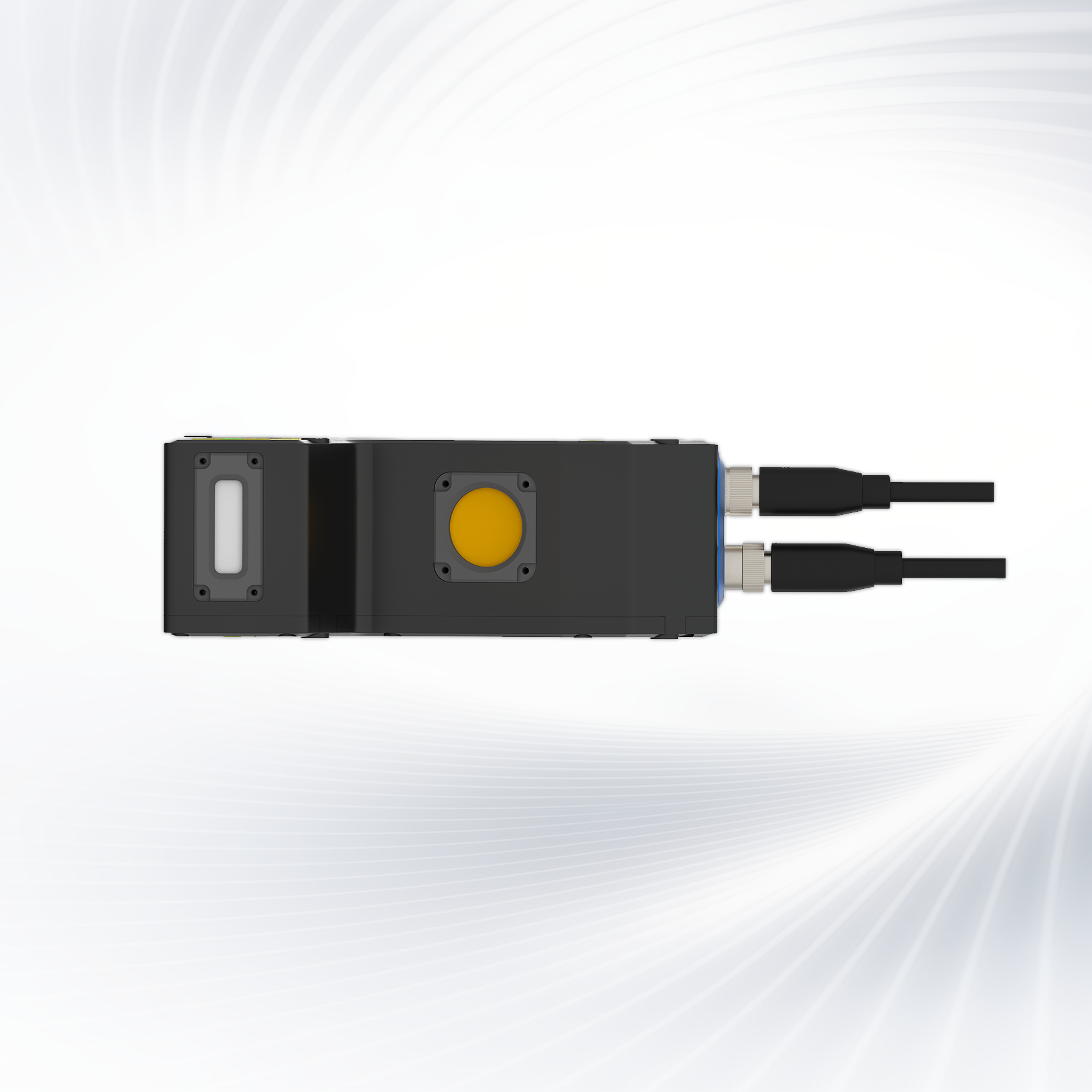

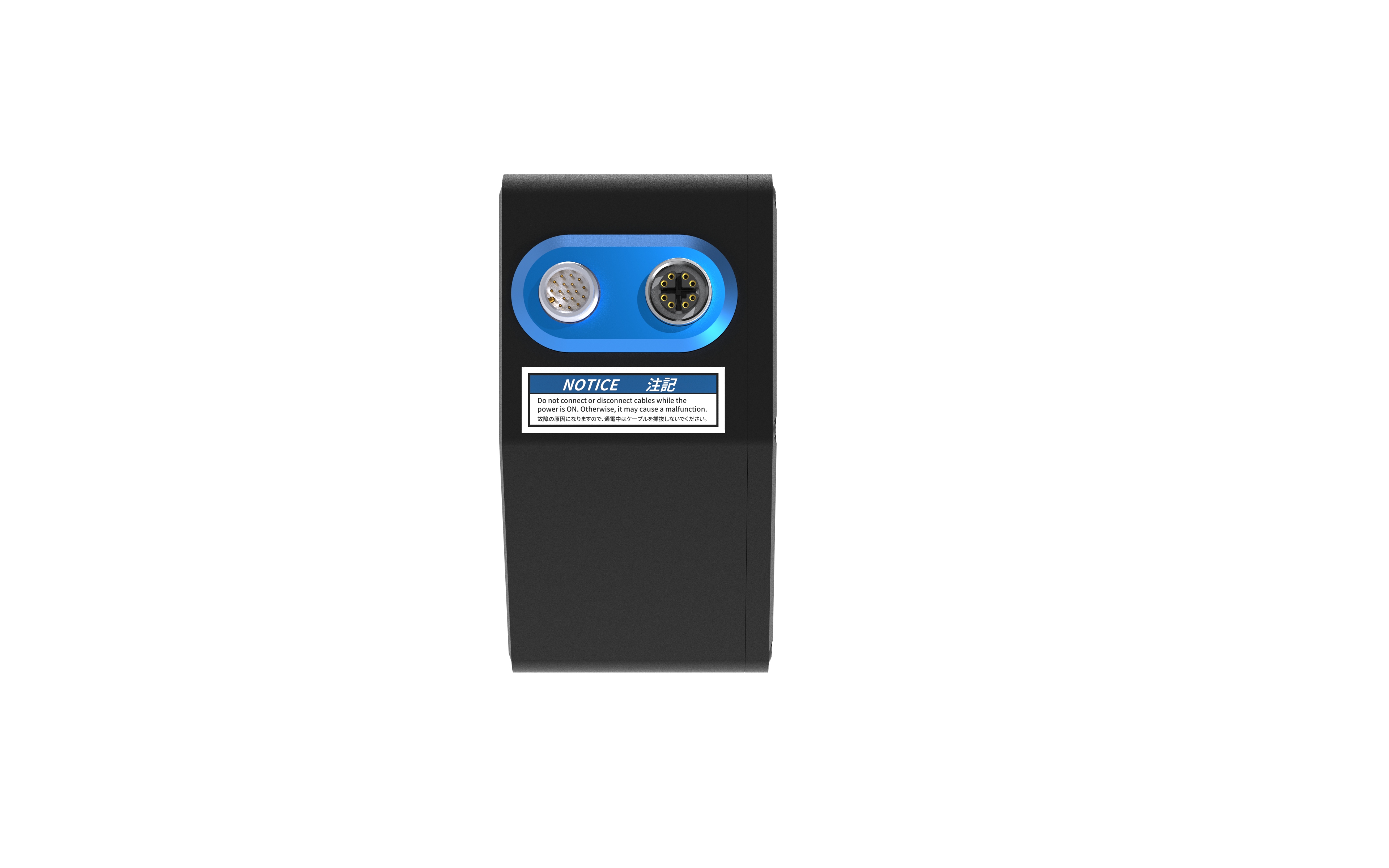

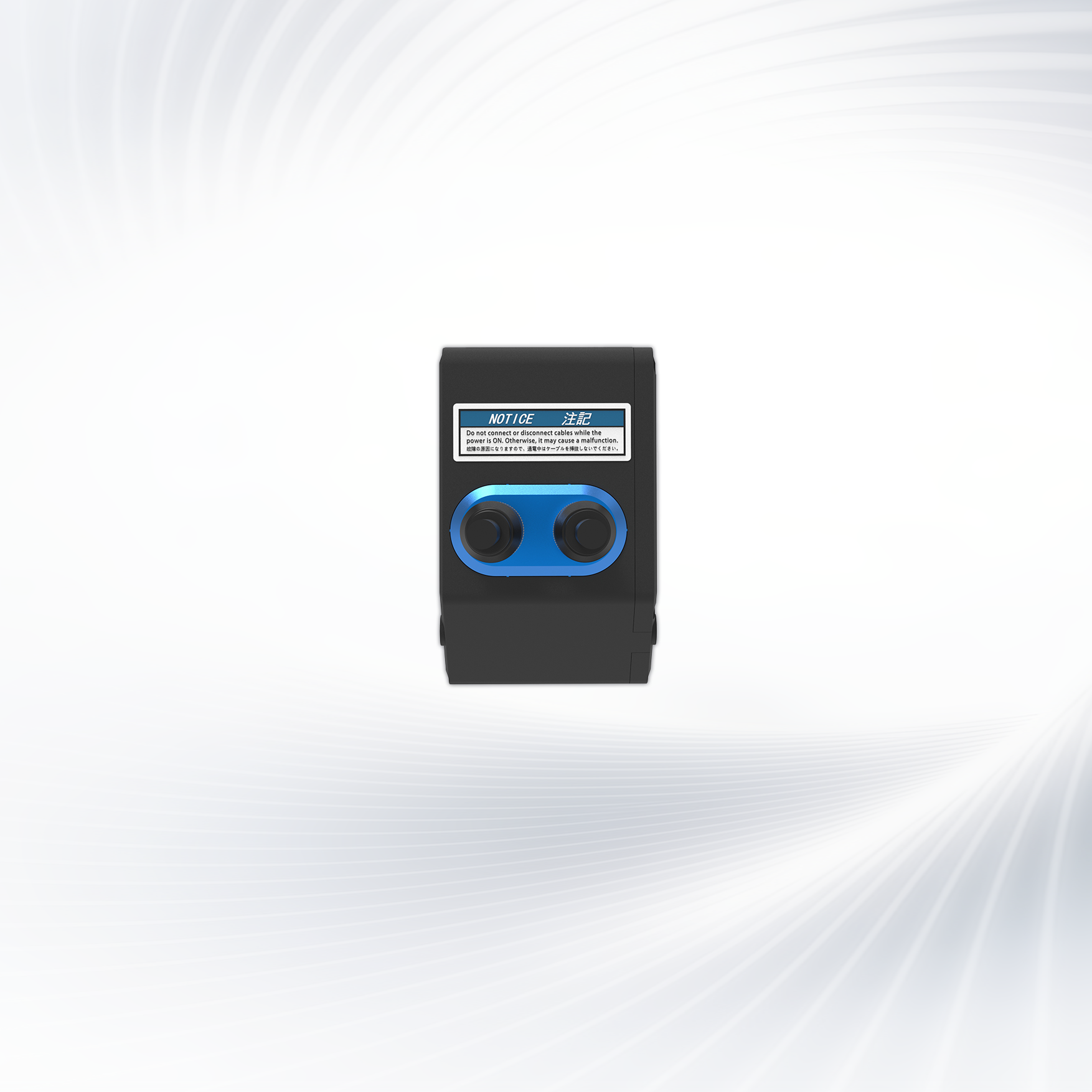

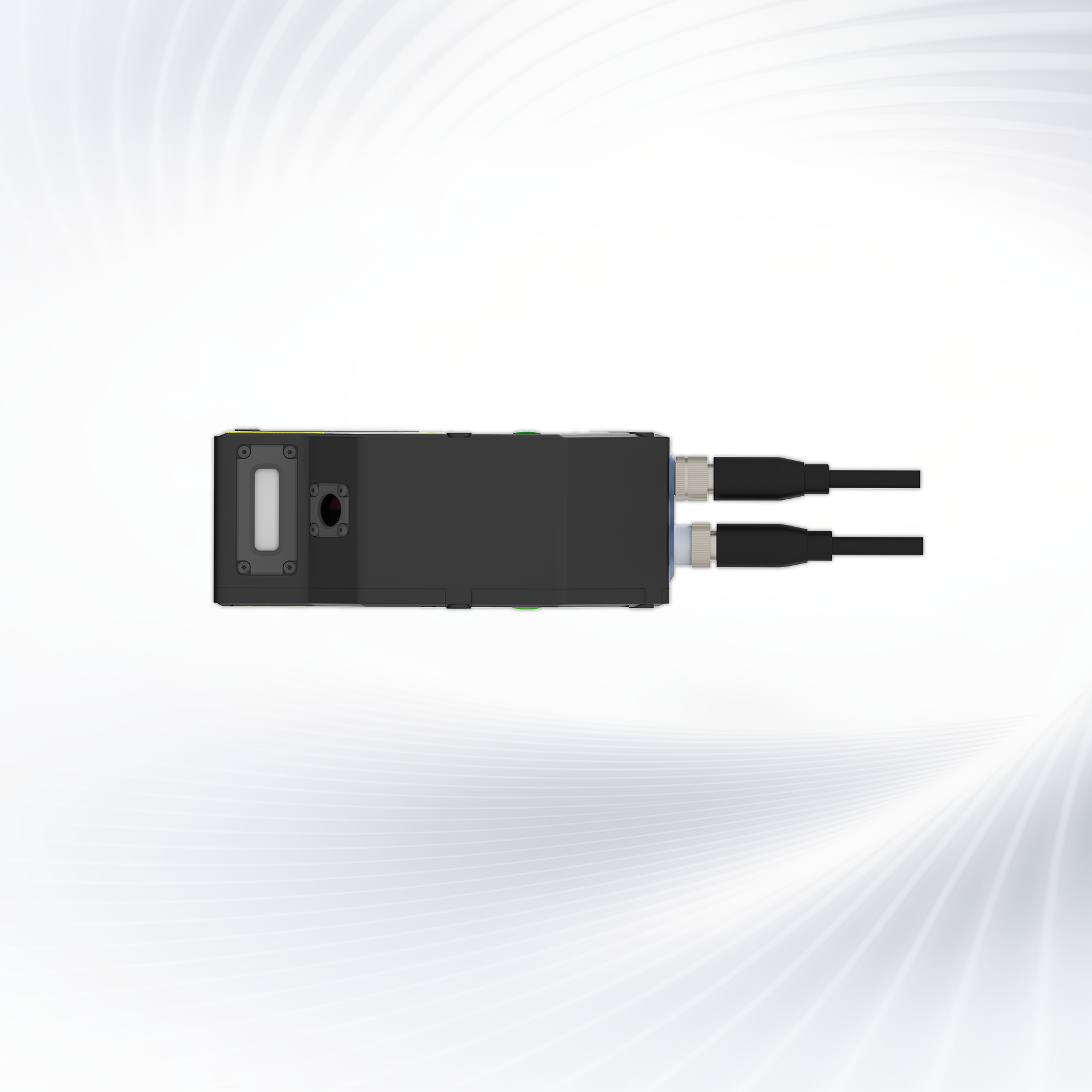

| Model |
JWB3P5Z |
| Z - axis[*1] |
Near |
5.2 mm |
| Reference distance |
5.7 mm |
| Far |
6.2 mm |
| Measurement height range |
1 mm |
| Linearity accuracy[*2] |
±0.05% of F.S. |
| Repeatability[*3] |
0.2 μm |
| X - axis[*4] |
Near |
3.5 mm |
| Reference distance |
3.6 mm |
| Far |
3.7 mm |
| Repeatability[*3] |
0.2 μm |
| Light source[*5*6] |
Type |
Blue Semiconductor Laser（405 nm）
|
| Laser class |
Class 3R |
| Voltage Range |
11-30 VDC |
| Switch Output |
Open collector output (NPN/PNP switchable), N.O./N.C. switchable |
| Communication interfaces |
1000BASE-T |
| Encoder |
Differential encoder (5 V output: max 150 mA) |
| HDR (High dynamic range)[*7] |
Single frame HDR |
| Operating temperature |
0 - 45°C |
| Profile data points |
3200 points |
| Measuring rate |
250 Hz - 16 KHz |
| Display |
LED indicator × 2 |
| Material |
Housing: Aluminum alloy |
| Protection class[*8] |
IP67 |
*1 Measurement target: standard diffuse object. The average height value measured in the initial set area using the height/position tool is the speci- fied value. Other settings remain default.
*2 Measurement target: standard diffuse object.The profile data is measured after 64 smoothing processes and 8 averaging steps. Other settings remain default.
*3 The value is the average of 4096 measurements taken at the reference distance.
*4 Measurement target: pin gauge. Measure R-surface/edge intersection with height/position tool. Other settings are default.
*5 Classification according to FDA (CDRH) Laser Notice No. 56, based on IEC60825 - 1 standards.
*6 Do not directly observe the laser beam using optical devices such as magnifying glasses or telescopes.
*7 One exposure (shot) is sufficient for stable and high - precision measurements of surfaces with significant contrast differences.
*8 Values when the sensing head cable or extension cable is connected.
